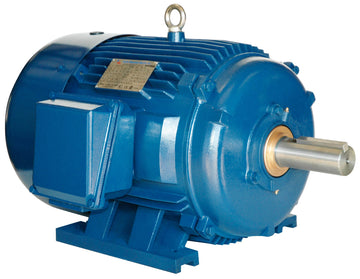

PE365T-75-4 75 hp 365T electric motor 1800 tefc North American

75hp 365T electric motor 1800 rpm 3 phase tefc PE365T-75-4

75 hp electric motor 365T frame 3 phase 208-230/460 volt 1800 rpm

PE365T-75-4 North American Electric

 This is a new inverter duty totally enclosed fan cooled electric motor.

This is a general purpose severe duty motor that can be used in most applications.

Three Year warranty! Inverter Duty 20:1 Variable Torque/10:1 Constant Torque

Class 1 Div II  Groups ABCD,T2B

Class 2 Div II  Groups F &G

1.15 Service Factor @ 60 Hertz/1.0 Service Factor @ 50 Hertz/Suitable for 575V @ 1.0 Service Factor

Sealed Bearings 143T-215T Frame/Regreasable Open Bearings 254T-587UZ Frame

Insulated Bearing on ODE Available on 444T-587UZ

Class F Insulation System;Class B Rise at Full Load

Class H Vacuum Pressure Impregnation(VPI) Resin For All Windings

40 Degree C Ambient Continuous Duty

NEMA Design B Performance/High Starting Torque

Feet Are Dual Drilled For Mounting Flexibility(213T/215T,254T/256T......)

Part Wind Start Capability

Corrosion Resistant Epoxy Paint

Can Be Converted To F2 Mount

Lifting Provision Provided

Condensation Drain with Plugs

Windings Rated For 2200V Peak Voltage Spikes

IP55 Protection

Three Year Warranty!

C & D Flange Field Conversions Kits Available
